Java 共享模型之 JMM

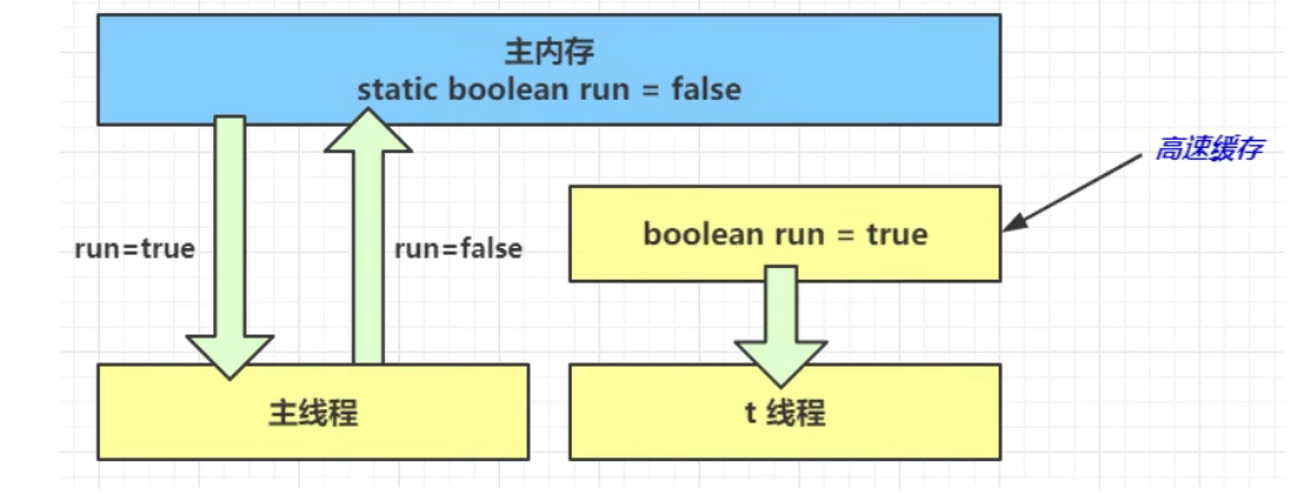

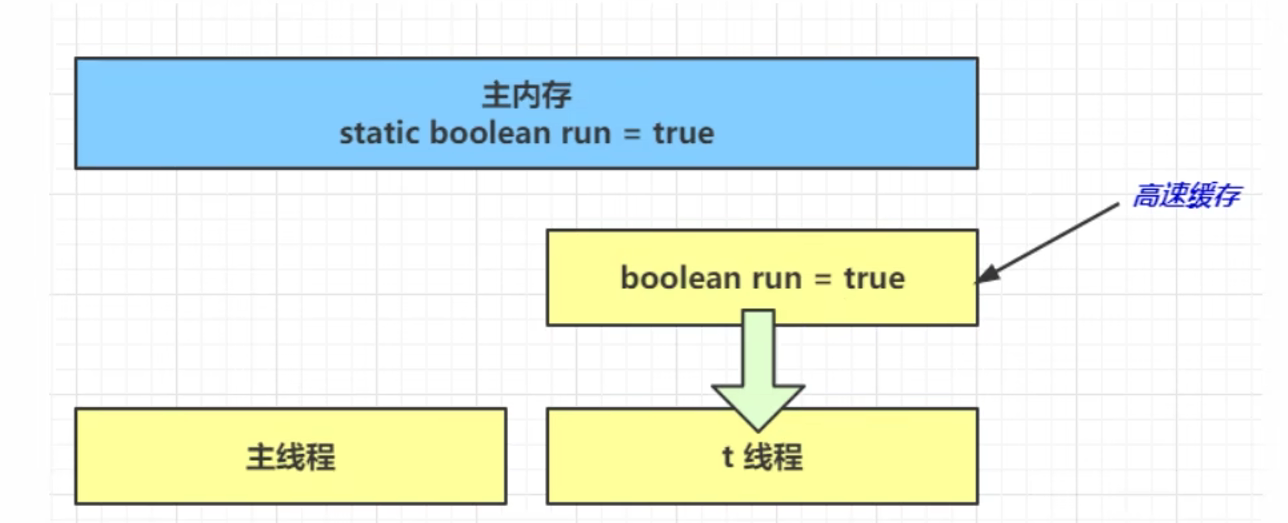

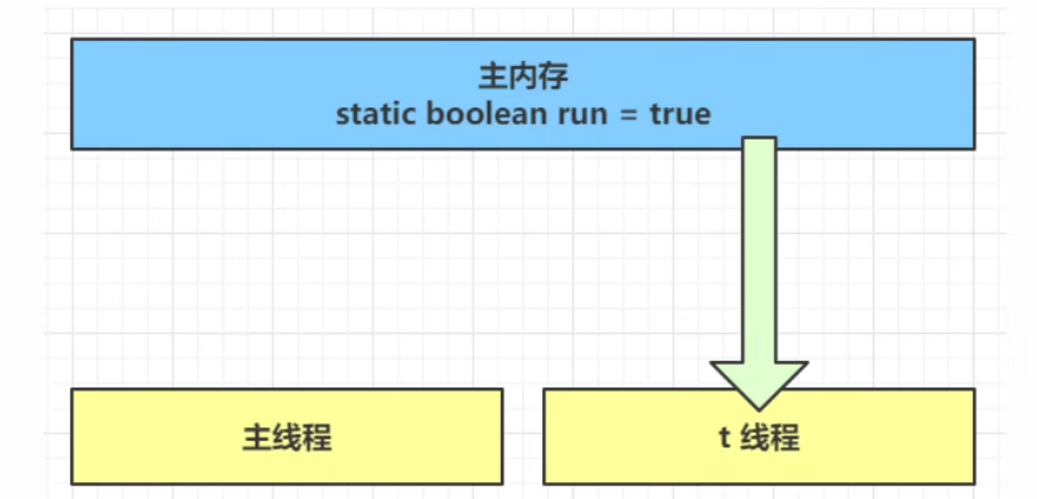

static boolean run = true;

public static void main(String[] args) throws InterruptedException {

    Thread t = new Thread(()->{
        while(run){
            // ....
        }
    });
    t.start();

    sleep(1);
    run = false; // 线程t不会如预想的停下来
}

@Slf4j
public class Test17 {
    volatile static boolean run = true;

    public static void main(String[] args) throws InterruptedException {
        Thread t = new Thread(() -> {
            while (run) {
                // ....
            }
        });
        t.start();

        Thread.sleep(1000);
        log.info("停止t");
        run = false; // 线程t不会如预想的停下来
    }
}

@Slf4j
public class Test17 {
    static boolean run = true;

    static Object lock = new Object();

    public static void main(String[] args) throws InterruptedException {
        Thread t = new Thread(() -> {
            while (true) {
                // ....
                synchronized (lock) {
                    if (!run) {
                        break;
                    }
                }
            }
        });
        t.start();

        Thread.sleep(1000);
        log.info("停止t");
        synchronized (lock) {
            run = false;
        }
    }
}

getstatic     run     // 线程 t 获取 run true
getstatic     run     // 线程 t 获取 run true
getstatic     run    // 线程 t 获取 run true
getstatic     run     // 线程 t 获取 run true
putstatic     run     // 线程 main 修改 run 为 false，仅此一次
getstatic     run     // 线程 t 获取 run false

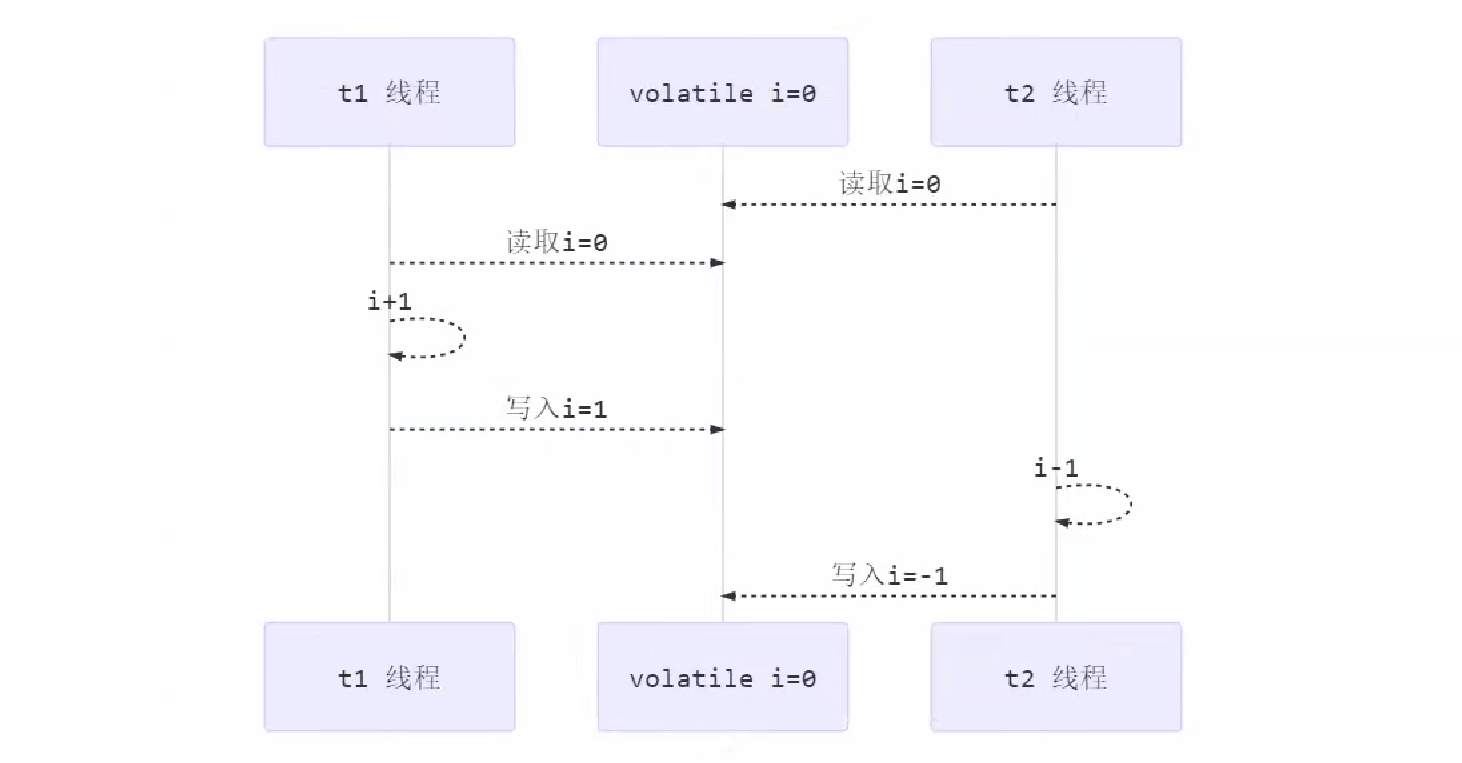

// 假设i的初始值为0
getstatic      i  // 线程2-获取静态变量i的值 线程内i=0

getstatic      i  // 线程1-获取静态变量i的值 线程内i=0
iconst_1       // 线程1-准备常量1
iadd           // 线程1-自增 线程内i=1
putstatic      i  // 线程1-将修改后的值存入静态变量i 静态变量i=1

iconst_1       // 线程2-准备常量1
isub           // 线程2-自减 线程内i=-1
putstatic      i  // 线程2-将修改后的值存入静态变量i 静态变量i=-1

static int i;
static int j;

// 在某个线程内执行如下赋值操作
i = ...;
j = ...;

i = ...;
j = ...;

j = ...;
i = ...;

// 可以重排的例子
int a = 10; // 指令1
int b = 20; // 指令2
System.out.println( a + b );

// 不能重排的例子
int a = 10; // 指令1
int b = a - 5; // 指令2

int num = 0;
boolean ready = false;

// 线程1 执行此方法
public void actor1(I_Result r) {
    if(ready) {
        r.r1 = num + num;
    } else {
        r.r1 = 1;
    }
}

// 线程2 执行此方法
public void actor2(I_Result r) {
    //这里可能发生指令重排序
    num = 2;
    ready = true;
}

mvn archetype:generate -DinteractiveMode=false -DarchetypeGroupId=org.openjdk.jcstress -DarchetypeArtifactId=jcstress-java-test-archetype -DarchetypeVersion=0.5 -DgroupId=cn.itcast -DartifactId=ordering -Dversion=1.0

@JCStressTest
@Outcome(id = {"1", "4"}, expect = Expect.ACCEPTABLE, desc = "ok")
@Outcome(id = "0", expect = Expect.ACCEPTABLE_INTERESTING, desc = "!!!!")
@State
public class ConcurrencyTest {

    int num = 0;
    boolean ready = false;

    @Actor
    public void actor1(I_Result r) {
        if(ready) {
            r.r1 = num + num;
        } else {
            r.r1 = 1;
        }
    }

    @Actor
    public void actor2(I_Result r) {
        num = 2;
        ready = true;
    }

}

2 matching test results.
    [OK] cn.itcast.ConcurrencyTest
    (JVM args: [-XX:-TieredCompilation])
Observed state    Occurrences             Expectation       Interpretation
        0            5,404    ACCEPTABLE_INTERESTING      !!!!!
        1        27,874,016          ACCEPTABLE            ok
        4        35,147,721          ACCEPTABLE            ok

    [OK] cn.itcast.ConcurrencyTest
    (JVM args: [])
Observed state    Occurrences             Expectation       Interpretation
        0            1,568    ACCEPTABLE_INTERESTING      !!!!!
        1        17,913,929          ACCEPTABLE            ok
        4        34,664,864          ACCEPTABLE            ok

@JCStressTest
@Outcome(id = {"1", "4"}, expect = Expect.ACCEPTABLE, desc = "ok")
@Outcome(id = "0", expect = Expect.ACCEPTABLE_INTERESTING, desc = "!!!!")
@State
public class ConcurrencyTest {

    int num = 0;
    volatile boolean ready = false;

    @Actor
    public void actor1(I_Result r) {
        if(ready) {
            r.r1 = num + num;
        } else {
            r.r1 = 1;
        }
    }

    @Actor
    public void actor2(I_Result r) {
        num = 2;
        ready = true;
    }

}

RUN RESULTS:
-------------------------------------------------------------------------------
*** INTERESTING tests
Some interesting behaviors observed. This is for the plain curiosity.
0 matching test results.
*** FAILED tests
Strong asserts were violated. Correct implementations should have no assert failures here.
0 matching test results.
*** ERROR tests
Tests break for some reason, other than failing the assert. Correct implementations should have none.
0 matching test results.

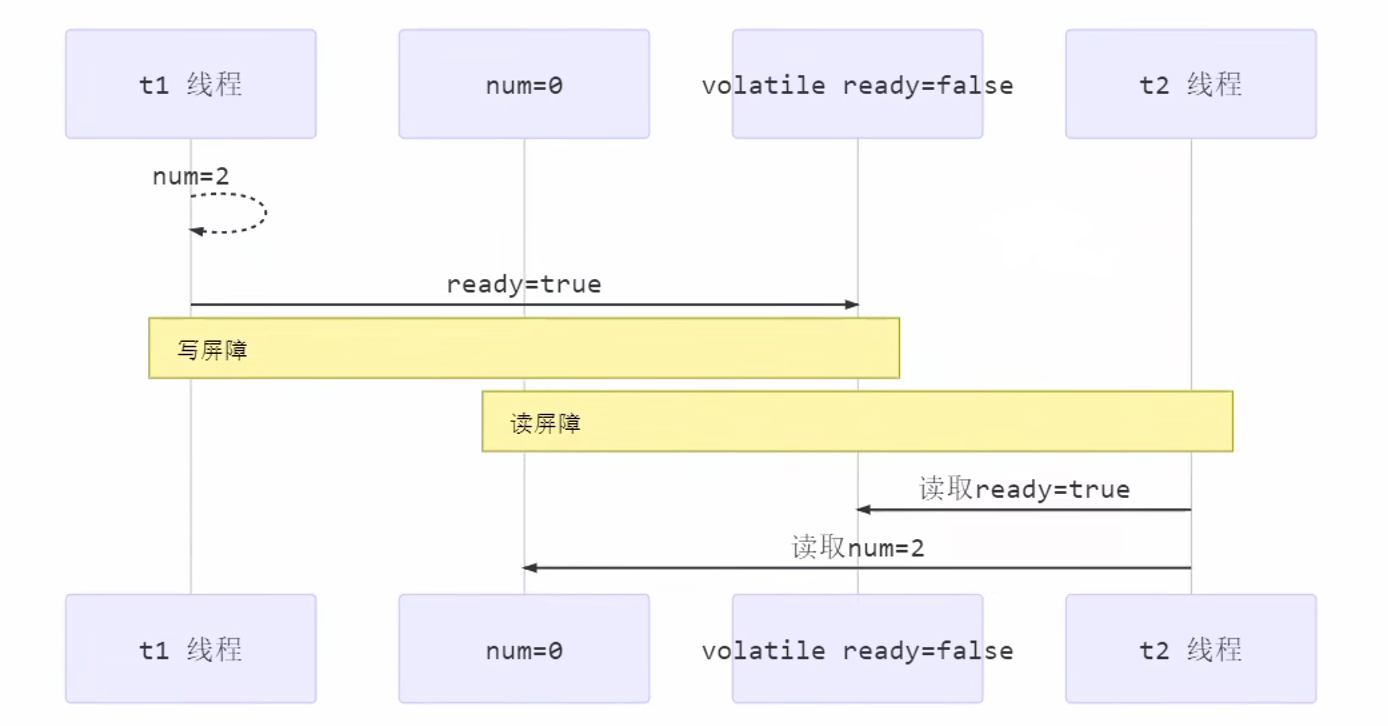

public void actor2(I_Result r) {
    num = 2;
    ready = true; // ready 是 volatile 赋值带写屏障
    // 写屏障
}

public void actor1(I_Result r) {
    // 读屏障
    // ready 是 volatile 读取值带读屏障
    if(ready) {
        r.r1 = num + num;
    } else {
        r.r1 = 1;
    }
}

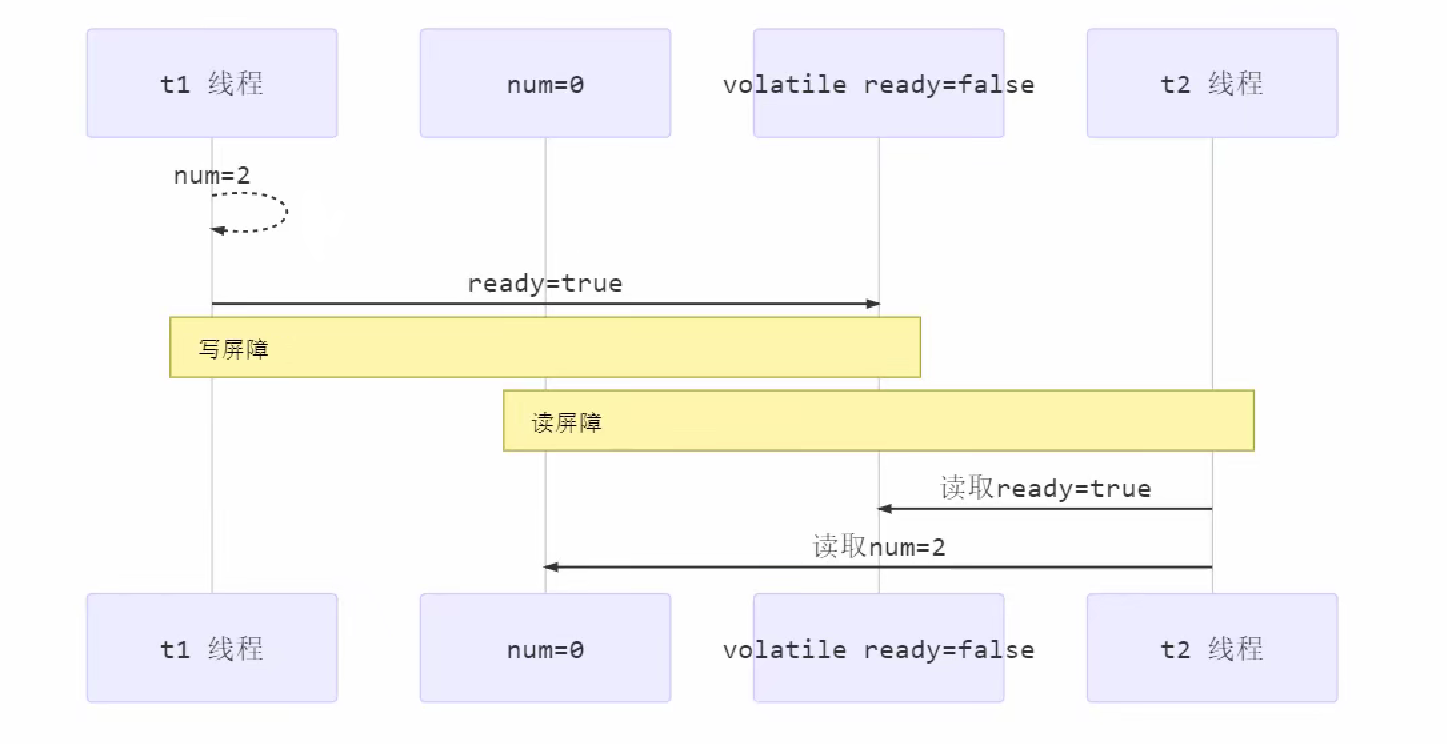

public void actor2(I_Result r) {
    num = 2;
    ready = true; // ready 是 volatile 赋值带写屏障
    // 写屏障
}

public void actor1(I_Result r) {
    // 读屏障
    // ready 是 volatile 读取值带读屏障
    if(ready) {
        r.r1 = num + num;
    } else {
        r.r1 = 1;
    }
}

public final class Singleton {
    private Singleton() { }
    private static Singleton INSTANCE = null;

    public static Singleton getInstance() {
        if(INSTANCE == null) { // t2
            // 首次访问会同步，而之后的使用没有 synchronized
            synchronized(Singleton.class) {
                if (INSTANCE == null) { // t1
                    INSTANCE = new Singleton();
                }
            }
        }
        return INSTANCE;
    }
}

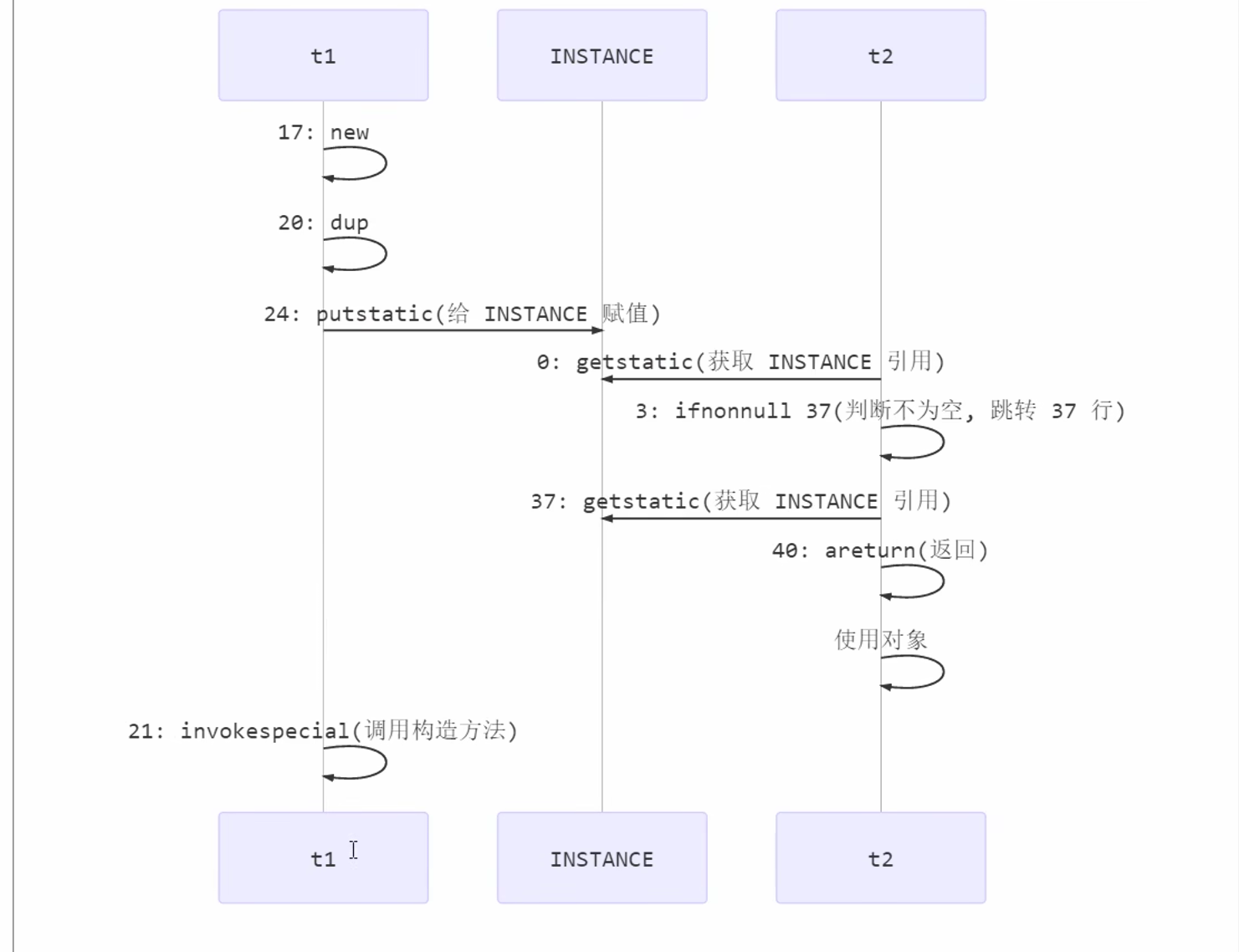

0: getstatic     #2               // Field INSTANCE:Lcn/itcast/n5/Singleton;
3: ifnonnull     37               // 如果 INSTANCE != null，跳到 37 直接返回
6: ldc           #3               // class cn/itcast/n5/Singleton
8: dup                           // 复制栈顶元素（类对象），保证后面 monitorenter/monitorexit 用
9: astore_0
10: monitorenter
11: getstatic    #2               // Field INSTANCE:Lcn/itcast/n5/Singleton;
14: ifnonnull    27
17: new          #3               // class cn/itcast/n5/Singleton
20: dup
21: invokespecial #4               // Method "<init>":()V
24: putstatic    #2               // Field INSTANCE:Lcn/itcast/n5/Singleton;
27: aload_0
28: monitorexit
29: goto         37
32: astore_1
33: aload_0
34: monitorexit
35: aload_1
36: athrow
37: getstatic    #2               // Field INSTANCE:Lcn/itcast/n5/Singleton;
40: areturn

public final class Singleton {
    private Singleton() { }
    private static volatile Singleton INSTANCE = null;

    public static Singleton getInstance() {
        // 实例没创建，才会进入内部的 synchronized代码块
        if (INSTANCE == null) {
            synchronized (Singleton.class) { // t2
                // 也许有其它线程已经创建实例，所以再判断一次
                if (INSTANCE == null) { // t1
                    INSTANCE = new Singleton();
                }
            }
        }
        return INSTANCE;
    }
}

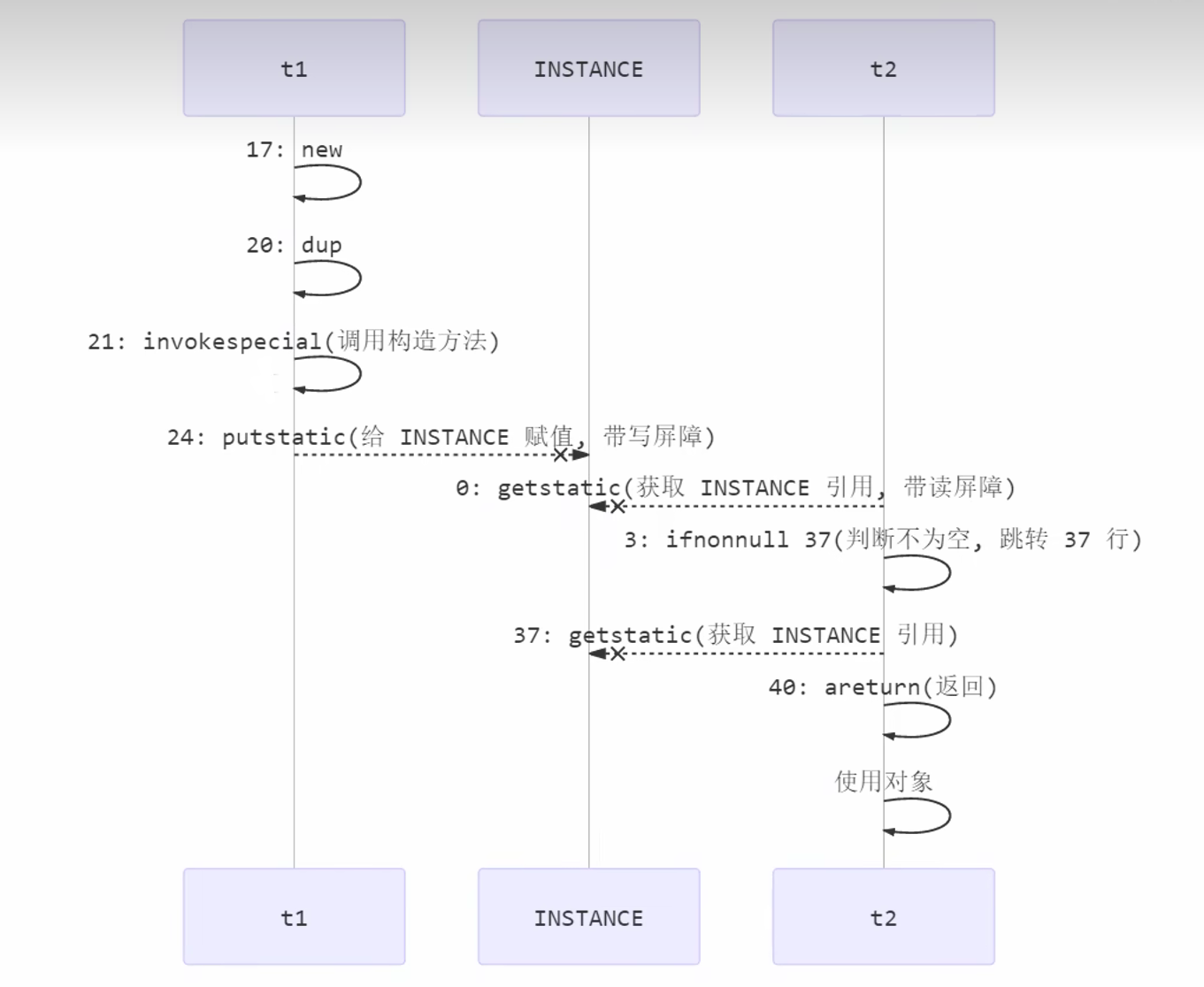

// ------------------------------> 加入对 INSTANCE 变量的读屏障
0: getstatic     #2                      // Field INSTANCE:Lcn/itcast/n5/Singleton;
3: ifnonnull     37
6: ldc           #3                      // class cn/itcast/n5/Singleton
8: dup
9: astore_0
10: monitorenter  ------------------> 保证原子性、可见性
11: getstatic     #2                      // Field INSTANCE:Lcn/itcast/n5/Singleton;
14: ifnonnull     27
17: new           #3                      // class cn/itcast/n5/Singleton
20: dup
21: invokespecial #4                      // Method "<init>":()V
24: putstatic     #2                      // Field INSTANCE:Lcn/itcast/n5/Singleton;
// ------------------------------> 加入对 INSTANCE 变量的写屏障
27: aload_0
28: monitorexit  ------------------> 保证原子性、可见性
29: goto          37
32: astore_1
33: aload_0
34: monitorexit
35: aload_1
36: athrow
37: getstatic     #2                      // Field INSTANCE:Lcn/itcast/n5/Singleton;
40: areturn

    static int x;
    static Object m = new Object();
    new Thread(() -> {
        synchronized(m) {
            x = 10;
        }
    }, "t1").start();
    new Thread(() -> {
        synchronized(m) {
            System.out.println(x);
        }
    }, "t2").start();

volatile static int x;

new Thread(() -> {
    x = 10;
}, "t1").start();

new Thread(() -> {
    System.out.println(x);
}, "t2").start();

static int x;
x = 10;
new Thread(() -> {
    System.out.println(x);
}, "t2").start();

    static int x;
    Thread t1 = new Thread(() -> {
        x = 10;
    }, "t1");
    t1.start();     // 线程结束之前，就会把共享变量的值同步到主存中
    t1.join();
    System.out.println(x);

static int x;

public static void main(String[] args) {
    Thread t2 = new Thread(() -> {
        while (true) {
            if (Thread.currentThread().isInterrupted()) {
                System.out.println(x);
                break;
            }
        }
    }, "t2");
    t2.start();

    new Thread(() -> {
        sleep(1);
        x = 10;
        t2.interrupt(); // 打断之前对变量的修改，对其他线程是可见的
    }, "t1").start();

    while (!t2.isInterrupted()) {
        Thread.yield();
    }
    System.out.println(x);
}

    volatile static int x;
    static int y;
    new Thread(() -> {
        y = 10;
        x = 20;     // 写屏障会把，写屏障之前的所有操作都同步到主存中并且还不会重排序，即使之前操作不是volatile
    }, "t1").start();
    new Thread(() -> {
        // x=20 对 t2 可见，同时 y=10 也对 t2 可见
        System.out.println(x);
    }, "t2").start();
